Philips Advance Philips Advance ICN3TTP40SC35I


Description

Industry Description

Ballast, Lamp Type: CFL, Ballast Type: Electronic Fluorescent, Voltage: 120-277, Wattage: 40, 3 I

Modified Industry Description

ELECTRONIC CENTIUM BALLAST FOR 3 40W CF 4-PIN

AD Description

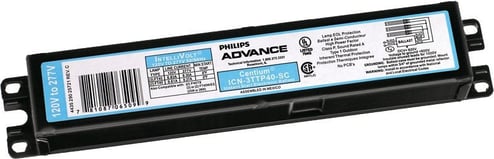

Advance Centium® ICN3TTP40SC35I Electronic Compact Fluorescent Ballast, CFL Lamp, 40 W Lamp, 120 to 277 VAC, Instant, 0.88 Ballast Factor

Vendor Description

Reliable and robust, this broad line of Centium® high frequency electronic ballasts for t5, T5HO, T8 and T12 fluorescent lamps offers all of the necessary commercial grade specifications plus the added benefits of lamp striation reduction technology making these ballasts compatible with energy saving T8 lamps. This provides your customers with a better energy saving solution than when using standard T8 ballast. Our Centium® ballasts are an optimal choice for a broad range of new construction and retrofit applications within the commercial sector, including general office lighting, conference, meeting and board room applications, indirect and decorative lighting and new fixture designs requiring smaller ballasts.

Specifications

Amperage Rating
0.35 to 0.83
Ballast_Factor
0.88
Brand Name
Philips Advance
Country of Origin
USA
Frequency_Rating
50/60
Lamp_Type
FT40W
Material
Metal
Number_Of_Lamps
3
Power_Factor
0.98
Special Features

  • 0 deg F starting capability - suitable for cold temperature applications
  • 20 to 24 dB average ambient noise level
  • Auto-restrike capability - eliminates the need to reset power mains after failed lamps are replaced
  • Blue color label identification
  • High power factor
  • IntelliVolt technology (120 to 277 VAC)
  • Lamp EOL protection
  • Long twin tube, parallel lamp connection
  • UL type CC rated - Anti-arcing circuitry provides greater flexibility to meet end user application requirements

Standard
CSA certificate;UL certificate;CEC Listing;RoHS Compliant
Start_Type
Instant
Sub_Brand
Philips Advance
Total_Harmonic_Distortion
10%
Type
Electronic Fluorescent
Vendor
Signify
Voltage Rating
120 to 277
Wattage
99/97
