Siemens Siemens E4XHLD63B600
Siemens E4XHLD63B600
Kirby Risk #: 2197581
UPC: 78364329904, 783643299047, 00783643299047
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

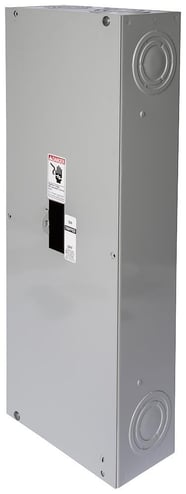

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 600A 3-POLE 600V STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY (HLD63B600). INTERCHANGEABLE TRIP UNIT. NEMA TYPE 4X STAINLESS STEEL ENCLOSURE (LD6SS4). ORDER NEUTRAL (W60993). INCLUDES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 30.00 x 42.00 x 10.00.
Modified Industry Description
BREAKER ENC4X 3P 600A 600V 35KA
AD Description
Sentron™ E4XHLD63B600 Type HLD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Amperage Rating |
600
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
45 in L x 32 in W x 15 in H
|
| Enclosure |
Type 4X
|
| Environmental_Conditions |
INDUSTRIAL CORROSIVE RESISTANT
|
| Frame |
LD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Length1 |
45.0000
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Type HLD6 Low Voltage
|
| Voltage Rating |
600
|
