TPI TPI 22390THSS240V


Description

Industry Description

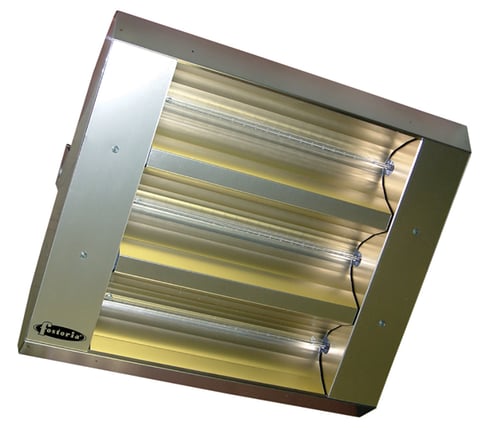

Electric Infrared Heater, Fostoria, 4.8 KW, 240 V, Dimensions- 24 Length X 21-1/2 Width X 10-7/8 Height IN, 1/3 PH, Stainless Steel Housing, Mul-T-Mount, BTU Rating- 16382, THSS Series, 90 Deg Symmetrical

Modified Industry Description

4.8KW 240V 90Sym Mul-T Mount

AD Description

TPI Fostoria 22390THSS240V THSS 1/3 Phase Mul-T-Mount Electric Infrared Heater, 16382 Btu/hr Capacity, 240 VAC, 4.8 kW Power Rating

Specifications

Application
Indoor/Outdoor-Commercial/Industrial
Beam_Pattern
90 deg Symmetrical
Brand Name
TPI
Country of Origin
US
DimensionsInches
24 Length X 21-1/2 Width X 10-7/8 Height IN
Housing_Material
Stainless Steel
Model
223-90-THSS-240V
Mounting
Mul-T-Mount
Phase
1/3
Power_Rating
4.8
Series
THSS
Special Features

  • 0 to 45 deg tilt at 15 deg increments
  • 20 ga painted stainless steel housings
  • 23-1/2 in mounting centers
  • 3-Lamp wiring
  • 50% higher watt densities for 3-element units
  • 63016249 replacement element
  • Durable in harsh atmospheres and outdoor environments
  • Gold anodized aluminum reflectors and end caps
  • High temperature lead wires
  • In-built surface mounting bracket allows for fixture adjustment up to a 45 deg horizontal tilt
  • In-built surface mounting brackets attached to the top wiring channel
  • Listed for recessed applications
  • Listed for suspended, totally exposed (outdoor), high bay (indoor) comfort heating and exterior snow and ice control applications
  • Stainless steel models have non-corrosive housing, hardware and brackets, no ferrous metals used in the unit
Standard
cETLus Listed
Sub_Brand
TPI
Type
1/3-Phase Mul-T-Mount
Voltage Rating
240
Wattage
4,800
