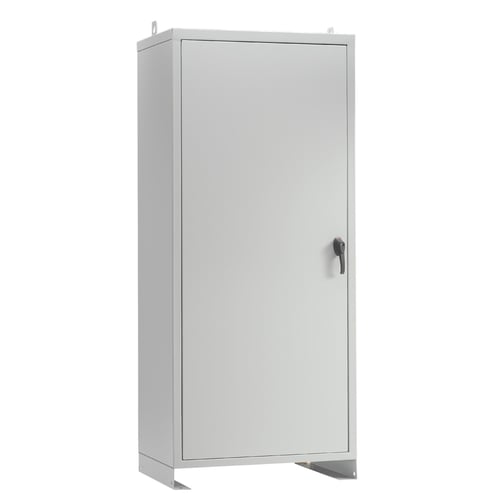

Hoffman Hoffman A72N7218FSLP


Description

Industry Description

Free-Stand, Type 1, 72.00x72.00x18.00, Gray, Steel

Modified Industry Description

LRG TYPE 1 ENC 2 DOOR

AD Description

Hoffman A72N7218FSLP A38 2-Door Large Enclosure With Heavy Duty Handle, 72 in L x 72 in W x 18 in D, NEMA 1/IP30 NEMA Rating, Steel

Vendor Description

Free-Stand Type 1 Enclosures are an economical way to protect electrical and electronic equipment in applications that do not require extensive environmental protection.

Specifications

Application
Controls and Drives; Power Distribution
Brand Name
Hoffman
Color
Light Gray
Country of Origin
MX
Cover_Type
Hinged
Material
Steel
NEMA_Rating
NEMA 1/IP30
Series
A38
Size
72.00X72.00X18.00 in
Special Features

  • 12 ga back covers
  • 14 ga steel body and door
  • 4 in high 10 ga steel integral lifting base
  • Bonding provision on each door
  • Easily reversible doors on single door models
  • Heights from 48 to 84 in
  • Optional rack angles mount to top and bottom of front flanges
  • Overlapping doors with no center post on two door models
  • Pre-drilled holes in lifting base provide bolt-down capability
  • Removable back covers
  • Studs included for mounting optional panels on threaded bolts
  • Sturdy 7 ga lifting tabs
Standard
UL508A Listed, Type 1, File No. E61997, cUL Listed per CSA C22.2 No. 40, Type 1, File No. E61997, NEMA/EEMAC Type 1, IEC 60529 IP30
Sub_Brand
Hoffman
Type
2-Door Large
