Siemens Siemens E4XED63B100
Siemens E4XED63B100
Kirby Risk #: 2182647
UPC: 78364328591, 783643285910, 00783643285910
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

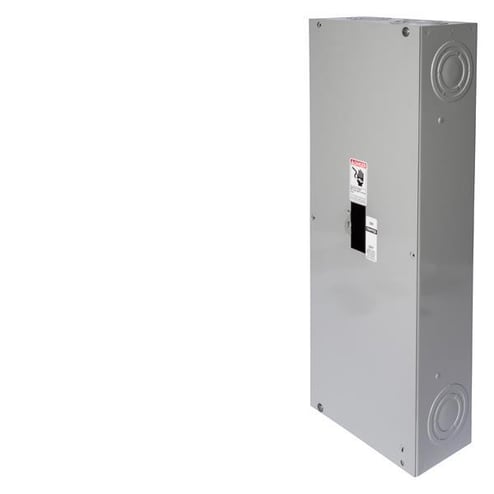

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 100A 3-POLE 600V STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY (ED63B100). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 4X STAINLESS STEEL ENCLOSURE (ED6SS4) WITH NEUTRAL (W53045). INCLUDES LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). ENCLOSURE DIMENSIONS (W x H x D) IN 16.00 x 20.00 x 6.00.
Modified Industry Description
BREAKER ENC4X 3P 100A 600V 18KA
AD Description
Sentron™ E4XED63B100 Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Country of Origin |
US
|
|---|---|
| Enclosure |
Type 4X
|
| Environmental_Conditions |
INDUSTRIAL CORROSIVE RESISTANT
|
| Frame |
ED
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18KA
|
| Length1 |
25.0000
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Type |
ED6
|
| Voltage Rating |
600
|
