NSI NSi 1000L2
NSI 1000L2
Kirby Risk #: 2180823
UPC: 66238100134, 662381001344, 00662381001344
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

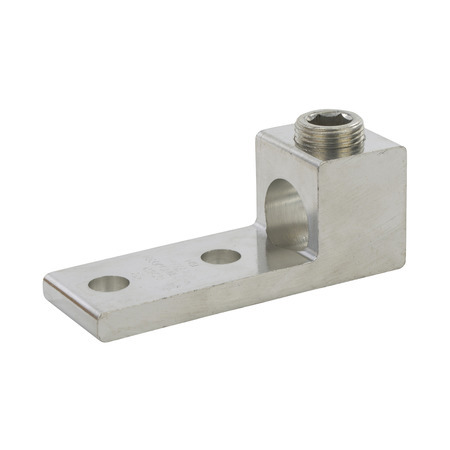

1 Port Panelboard Lug 1000 MCM - 500 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Modified Industry Description
NEMA PANEL LUG 1000-500
AD Description
NSI 1000L2 Dual Rated Panelboard Lug, 500 to 1000 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Copper and Aluminum Conductors
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
1/2
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
1000-500 MCM
|
| Country of Origin |
USA
|
| Finish |
Aluminum
|
| Material |
Aluminum
|
| Mounting_Hole_Spacing |
1.75
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
2
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Panelboard Lug
|
| Voltage Rating |
600
|
