Panduit Pan-Net Panduit Pan-Net IAEBHC5E


Description

Industry Description

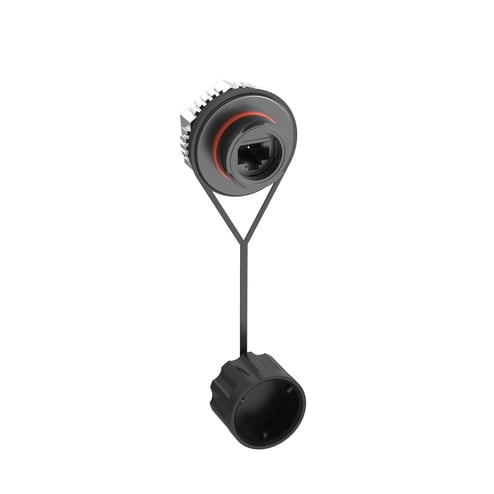

Category 5e, RJ45, 8-position, 8-wire industrial black bulkhead coupler with protective cover.

Modified Industry Description

CATEGORY 5E BULKHEAD CONNECTOR W/ COVER

AD Description

Panduit® IndustrialNet™ TX5e™ IAEBHC5E 8-Pole 8-Wire TG Style Coupler Connector With Protective Cover, UTP Coupler Jack/Cat 5e Coupler Module, 1 Port, Copper, Black

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Color
Black
Country of Origin
USA
Depth
1.32
Environmental_Conditions
Harsh Industrial
Material
Copper
Model
Mini-Com
Number_Of_Ports
1
Special Features

  • Bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole
  • Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord
  • Connector mounting nut holds bulkhead safely and securely from inside of enclosure
  • Eliminates the potential for module rotation
  • Harsh industrial environmental conditions
  • Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in
  • Plug contact plated with 50 micron-in of gold
  • Provides positive reinforcement during mated condition rated to 100 mating cycles
  • Speeds installation and places no impact on critical components for maximum reliability
Standard
Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections aga
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Jack TG Style Industrial Unshielded
Width_2
7.2000
Width_3
7.4000
