Siemens Siemens JXD22B350
Siemens JXD22B350
Kirby Risk #: 2171921
UPC: 78364321290, 783643212909, 00783643212909
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

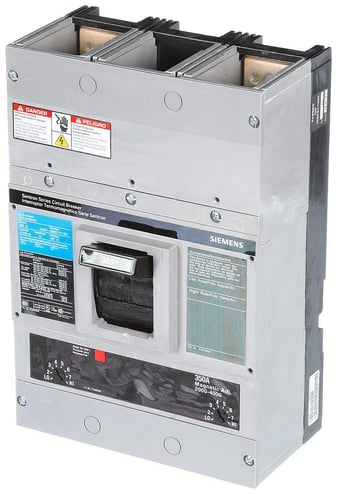

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 350A 2-POLE (65KAIC AT 240V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
BREAKER JD 2P 350A 240V 65KA FX NL
AD Description
Sentron™ JXD22B350 Low Voltage Molded Case Circuit Breaker, 240 VAC/250 VDC, 350 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
350
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
400A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
65
|
| Material |
N/A
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40 Deg C
|
| Phase |
1
|
| Poles |
2
|
| Special Features |
|
| Standard |
UL 489 Listed, HACR Rated
|
| Sub_Brand |
Siemens
|
| Trip_range |
2000 to 4000
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
240 VAC/250 VDC
|
| Width_2 |
40.0000
|
