Hoffman Hoffman A404014CTDP


Description

Industry Description

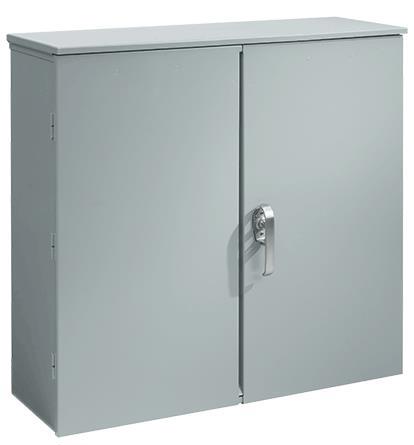

Hinged Double-Door with Three-Point Latch and Wood Panel, 40.00x40.00x14.00, Steel

Modified Industry Description

DUKE POWER CT ENC W WOOD PNL

AD Description

Hoffman A404014CTDP A90CT 2-Door Current Transformer Enclosure With 3-Point Latch, 40 in L x 14 in W x 40.07 in D, NEMA 3R NEMA Rating, Steel

Vendor Description

Hoffman products are developed in world class test facilities, based on 70 years of enclosures experience and 30 years of cooling experience. They're rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Specifications

Application
Commercial
Brand Name
Hoffman
Color
Gray
Country of Origin
MX
Cover_Type
Hinged
Material
Steel
NEMA_Rating
NEMA 3R
Series
A90CT
Size
40.00X40.00X14.00 in
Special Features

  • 14 ga galvanized steel enclosure body and cover
  • 3-point latch with seal or padlock
  • ANSI 61 gray polyester powder painted inside and out over pretreated surfaces
  • Drip shield top and seam-free sides, front and back
  • Enclosure bottom of 16 ga galvanized steel
  • Ground lug on body
  • Mounting holes on back of enclosure
  • No gasketing or knockouts
  • Provision for padlocking
  • These cabinets are available in a variety of sizes, models and instrument current transformer mounting methods to fit a wide range of applications
  • Welded in collar studs supply provisions for mounting panel
Sub_Brand
Hoffman
Type
2-Door
