O-Z/Gedney O-Z/Gedney GUAX75


Description

Industry Description

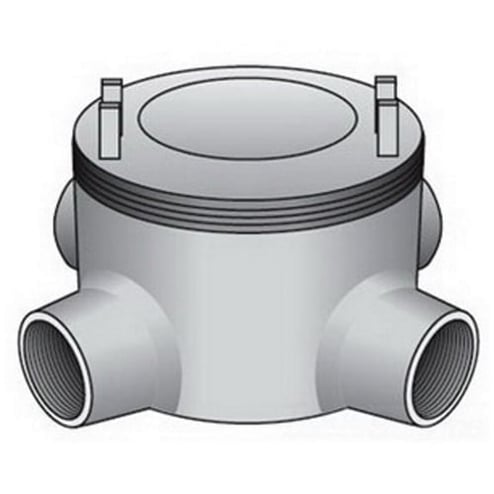

OZ-Gedney Type GUAX Conduit Outlet Box, Number Of Outlet: 4, Malleable Iron Body, Copper-Free Aluminum Cover, Size: 3/4 IN, Cable Entry: (4) 3/4 IN Hubs, 15 CU-IN Capacity, No, 3 IN Cover Opening, Finish: Zinc Electroplated With Aluminum Enamel, 3-5/8 IN Width, 2-1/8 IN Depth, NEMA Rating: NEMA 4, 7CD, 9EFG, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563, For Rigid Conduit And IMC

Modified Industry Description

HAZ LOC COND OUTL BX

Specifications

Application
For Rigid Conduit And IMC
Country of Origin
MX
Dimensions
3-5/8 in H x 3-5/8 in W x 2-1/8 in D
Finish
Aluminum Enamel/Zinc Electroplated
Length1
7.0000
Material
Malleable Iron
Series
GUA
Size
3/4
Special Features

  • Cast in brackets on cover for use with breaker bar tools for tightening/loosening
  • For use in hazardous locations to provide for change in conduit direction access to conductors and as pull and splice boxes
  • Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
  • Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
  • O-ring gasket provides NEMA 4 rating
  • Smooth hub bushings protect insulation when pulling conductors
  • They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
Standard
Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563
Type
Dust-Ignitionproof Explosionproof
