Hubbell Hubbell HBL20GB306IV
Hubbell HBL20GB306IV
Kirby Risk #: 2158336
UPC: 78358521454, 783585214542, 00783585214542
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

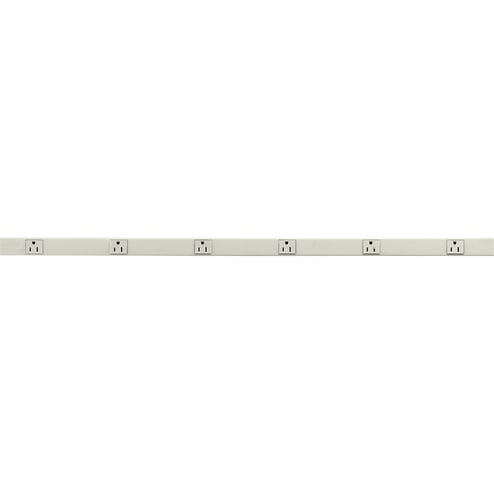

Hubbell Wiring Device Kellems, Metal PlugTrak, 15A 1 Circuit, 6Receptacle, 3' Length, Ivory
Modified Industry Description
15A 125V - IVORY 6 RECEPTACLE PLUGTRAK, 1 CIRCUIT, 3 FT
AD Description
Wiring Device-Kellems PlugTrak® HBL20GB306IV Fully Insulated Pre-Wired Standard Metallic Raceway, 37 in L x 1-1/2 in W x 1 in H, Steel
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Permanently Installed
|
| Brand Name |
Hubbell
|
| Cable_Size |
12AWG
|
| Color |
Ivory
|
| Conductor Material |
Copper
|
| Conductor Size |
#12 AWG THHN
|
| Country of Origin |
US
|
| Enclosure |
NEMA 1
|
| Environmental_Conditions |
Indoor Only
|
| Frequency_Rating |
60
|
| Fuse_Rating |
None
|
| Material |
Steel
|
| Mounting |
Mounting Holes
|
| Number_Of_Receptacles |
6
|
| Outside_Diameter |
1.31" x .83"
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL 5, CSA C22.2 no. 2 and UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Pre-Wired PlugTrak
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
| Width_2 |
2.8750
|
| Width_3 |
2.8750
|
