Southwire Southwire MC/AL-STR-3/4 W/G-CU-500 FT
Southwire MC/AL-STR-3/4 W/G-CU-500 FT
Kirby Risk #: 2158001
UPC: 03288634639, 032886346392, 00032886346392
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
3-4 STR CU THHN BLACK/RED/BLUE/WHITE/#6 GREEN GROUND AIA MC 600V 500 FT
Modified Industry Description
MC CABLE, STRANDED, 3 AWG, 4 CONDUCTORS, 500 FT
AD Description
Armorlite® 68723602 Type MC THHN Interlocked Armored Cable, 600 VAC, (4) 3 AWG Stranded Copper Conductors, 500 ft Reel L
Vendor Description

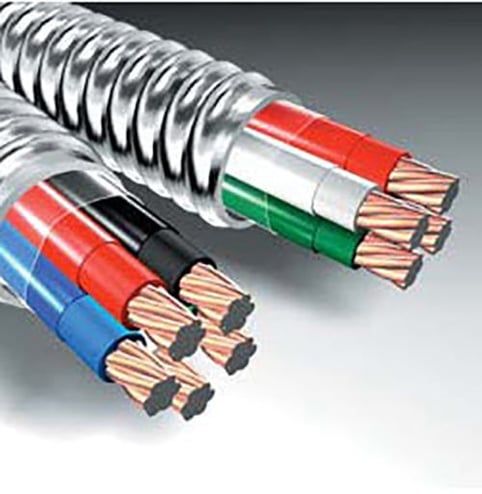

Southwire Armorlite® type MC cable - PVC jacketed is constructed with soft-drawn, copper type THHN/THWN conductors rated 90 deg C dry/ 75 deg C wet, and a green insulated grounding conductor. The conductors are cabled together and a binder tape is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. A black sunlight resistant, flame retardant PVC jacket is applied over the armor. Print legend is included on the binder tape as well as the overall PVC jacket. The jacket is available in other colors upon request subject to economic order quantities.
Specifications
| Amperage Rating |
115
|
|---|---|
| Brand Name |
Southwire
|
| Conductor Material |
Copper
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
3 AWG
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
PVC
|
| Number Of Conductors |
4
|
| Outside_Diameter |
1.152
|
| Package_Quantity |
500
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Type |
Type MC THHN
|
| Voltage Rating |
600
|
