Hubbell Hubbell HBL2613VBK
Hubbell HBL2613VBK
Kirby Risk #: 2156173
UPC: 78358504314, 783585043142, 00783585043142
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

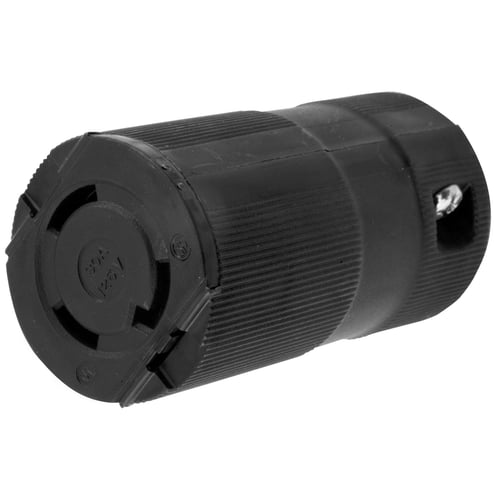

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise,Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, ScrewTerminal, Black
Modified Industry Description
LKG VAL CONN, 30A 125V, L5-30R, BK
AD Description
Wiring Device-Kellems Twist-Lock® Valise® HBL2613VBK Grounding Heavy Duty Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Color |
Black
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Dimensions |
2.59 in L x 1.78 in W
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
Insulated Body
|
| Length1 |
3.8580
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L5-30R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty
|
| Voltage Rating |
125
|
