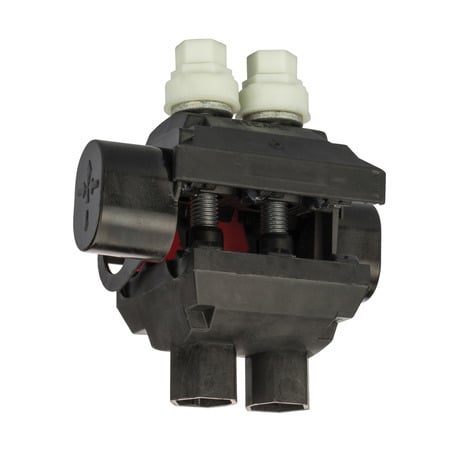

NSI NSi IPCS3535


Description

Industry Description

Insulation Piercing Connector 350 MCM - 1/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

Modified Industry Description

INSULATION PIERCING CONNECTOR

AD Description

NSI EASY-TAP IPCS3535 Dual Rated Piercing Insulation Connector, 1/0 AWG to 350 kcmil Aluminum/Copper Conductor, Fiber Reinforced Thermal Plastic

Specifications

Application
Splice, Tap Power Connectors
Brand Name
NSi
Color
Black
Conductor Type
Aluminum/Copper
Conductor Size
1/0 AWG to 350 kcmil
Country of Origin
FRA
Finish
Thermal Plastic
Material
Fiber Reinforced Thermal Plastic
Mounting
Clamp
Package_Quantity
1
Size
L=3.90 - W=3.00 - H=4.50
Special Features

  • 1/0 AWG to 350 kcmil tap size
  • Can be installed on energized conductors with no contact at any point
  • Can be used as a splice or a tap
  • Connection sealed by a rubber grommet
  • Easy to install and no special tools and third hand required
  • Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened
  • Made of fiber reinforced thermal plastic
  • No migration of water and no contamination between main and tap
  • Safe to use and are completely insulated, no need to strip wire
  • Suitable for solid and/or stranded wires
  • Versatile, reliable and no spacer required between connections
  • Watertight and corrosion free
Standard
UL486B Listed
Sub_Brand
NSi
Tap_Size
350 MCM-1/0
Temperature_Rating
90
Type
Dual Rated
Voltage Rating
600
