NSI NSi 2-800L2
NSI 2-800L2
Kirby Risk #: 2153923
UPC: 66238100143, 662381001436, 00662381001436
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

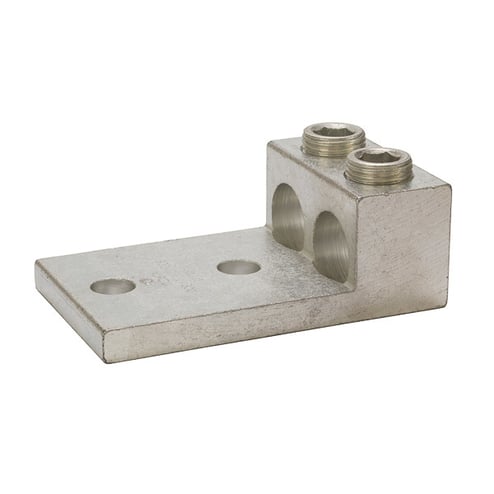

2 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Modified Industry Description
NEMA PANEL LUG (2)800-300
AD Description
NSI 2-800L2 Dual Rated Panelboard Lug, 300 to 800 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Copper and Aluminum Conductors
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Finish |
Aluminum
|
| Material |
Aluminum
|
| Standard |
cULus
|
| Type |
Panelboard Lug
|
