Leeson Leeson 108262.00


Description

Modified Industry Description

1.5HP 1750RPM WMS56CZ TEFC 180V CON MOTOR

AD Description

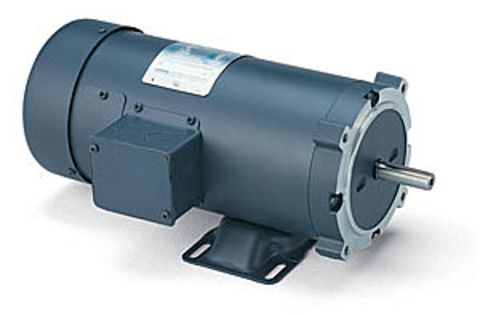

LEESON® 108262 C-Face SCR Rated DC Motor With Removable Base, 775 in-lb Torque, 1-1/2 hp Power Rating, 180 VDC, 7.6 A, 56C Frame, 1750 rpm Speed

Vendor Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

Specifications

Amperage Rating
7.6
Bearing_Type
Sealed
Brand Name
Leeson
Enclosure
TEFC
Frame
56C
Horsepower
1 1/2
Insulation_Class
Class H
Mounting
RIGID C
Power_Rating
1.5
Rotation
Reversible
RPM
1800
Service_Factor
1
Shaft_Size
7/8
Special Features

  • 115 or 230 VAC input power ratings and 90/180 VAC output
  • Brush holder design provides easy access to brushes
  • Capable of dynamic braking for faster stops
  • Dynamically balanced armature assemblies
  • High starting torque
  • Higher horsepower and speed achievable using PWM type DC controls
  • Large oversized brushes assure long brush life
  • LEESON® SCR controls available to power motors
  • NEMA C-face design
  • Permanently lubricated sealed bearings
  • PWM or SCR type controller rated
  • Removable bolt on base
Torque_Rating
775
Type
C-Face SCR Rated
Voltage Rating
180
