Siemens Siemens HMD63F800


Description

Industry Description

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER. 800A MD FRAME FOR HIGHBREAKING CAPACITY 3-POLE 600V BREAKERS.

Modified Industry Description

BREAKER MD 3P 800A 600V 50KA FR

AD Description

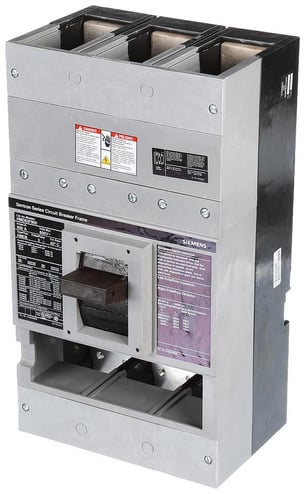

Siemens Sentron™ HMD63F800 Type HMD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 800 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Vendor Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Specifications

Actuator
Varying
Amperage Rating
800
Auxiliary_Contacts
N/A
Brand Name
Siemens
Connection
N/A
Country of Origin
MX
Enclosure
Varying
Environmental_Conditions
N/A
Frame
HMD6
Frequency_Rating
50/60
Interrupt_Rating
50
Material
N/A
Number_Of_Poles
3
Operating_Temperature
40C
Phase
3
Special_Features

  • 1/0 AWG to 500 kcmil copper aluminum wire range
  • Varying actuator
  • Varying enclosure

Standard
UL/HACR
Sub_Brand
Siemens
Temperature_Rating
40
Trip_range
4000 to 8000
Trip_Type
Thermal Magnetic
Type
Low Voltage
Voltage Rating
600 VAC/500 VDC
Width_2
40.0000
