Hubbell Hubbell NS730LA
Hubbell NS730LA
Kirby Risk #: 2149966
UPC: 88377850406, 883778504068, 00883778504068
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

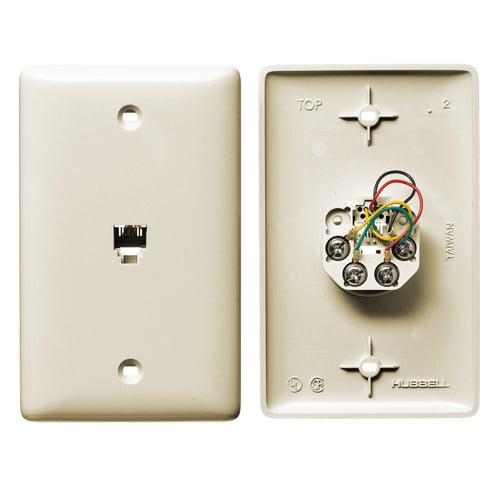

Hubbell Premise Wiring Products, Plates, 1-Gang, With Jack, 6-Position4-Conductor, Screw Terminal, Light Almond
Modified Industry Description
PREMISE 6 POS 4 CON LIGHT ALMOND
AD Description
Wiring Device-Kellems netSELECT® NS730LA Standard Molded-In Plate With (1) 6-Position 4-Conductor Jack, 1 Gang, Threaded Mount, Nylon
Specifications
| Application |
Communications
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
Light Almond
|
| Connection |
Screw Terminal
|
| Construction |
Molded
|
| Contact_Resistance |
Per TIA
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Finish |
Smooth
|
| Insertion_Loss |
Per TIA
|
| Label_Description |
NULL
|
| Material |
Nylon
|
| Mounting |
Screw Mounting
|
| Number Of Conductors |
4
|
| Number_of_Positions |
6
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
ANSI/TIA-568-C.2
|
| Sub_Brand |
Hubbell Premise Wiring
|
| Temperature_Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Type |
Telephone Jack
|
| Width_2 |
5.8080
|
| Width_3 |
11.5950
|
| Width_4 |
11.5950
|
