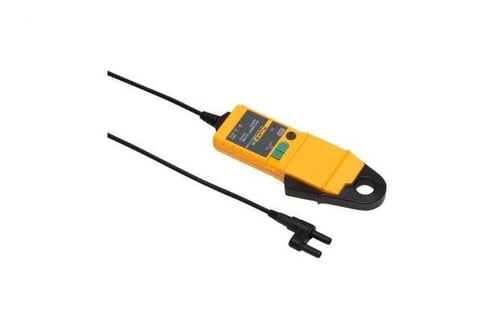

Fluke FLUKE I30S
Fluke I30S
Kirby Risk #: 2149089
UPC: 09596934510, 095969345101, 00095969345101
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Fluke
Description
Industry Description
Current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. May be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
Modified Industry Description
AC/DC CURRENT CLAMP
AD Description
Fluke® I30S Current Clamp, 30 A, 100 kHz, BNC Connection
Specifications
| Accuracy |
± 1 % of reading ± 2 mA
|
|---|---|
| Amperage Rating |
20
|
| Application |
Measure Current in conjunction with oscilloscopes and other suitable recording instruments
|
| Brand Name |
FLUKE
|
| Color |
Black/Brown/Yellow
|
| Connection_Type |
BNC
|
| Conductor Size |
99
|
| Country of Origin |
UKN
|
| Diameter |
.75
|
| DiameterInches |
.75
|
| Enclosure |
Hard Plastic
|
| Frequency_Rating |
100
|
| Measuring_Range |
5 mA to 30 A dc, 30 mA to 20 A ac rms
|
| Model |
Fluke i30s
|
| Package_Quantity |
1
|
| Repeatability |
None
|
| Resolution |
± 1 mA
|
| Special Features |
|
| Standard |
BS EN 61010-1:2001; BS EN 61010-2-032:2002; BS EN 61010-031:2002; 300 Vrms, Category III, Pollution Degree 2; Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz
|
| Sub_Brand |
Fluke
|
| Tip_Material |
Hard Plastic
|
| Type |
Current Clamp
|
