Thomas & Betts Thomas & Betts RE10261
Thomas & Betts RE10261
Kirby Risk #: 2148720
UPC: 78621083038, 786210830384, 30786210830385
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

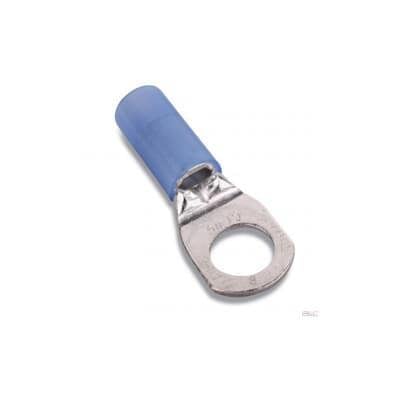

Nylon Insulated Large Ring Terminal, Length 1.55 Inches, Width .49 Inches, Maximum Insulation .315, Bolt Hole #10, Wire Range 6AN, Color Blue, Copper, Tin Plated
Modified Industry Description
TERMINAL
AD Description
Sta-Kon® RE10261 RE Series Insulated Ring Terminal, 6 AN AWG Conductor, 1.55 in L, Brazed/Overlapped Seam Barrel, Copper, Blue
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Blue
|
| Conductor Size |
6 AN
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
200
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#10
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
