NSI NSi AL300N
NSI AL300N
Kirby Risk #: 2147896
UPC: 66238103105, 662381031051, 00662381031051
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

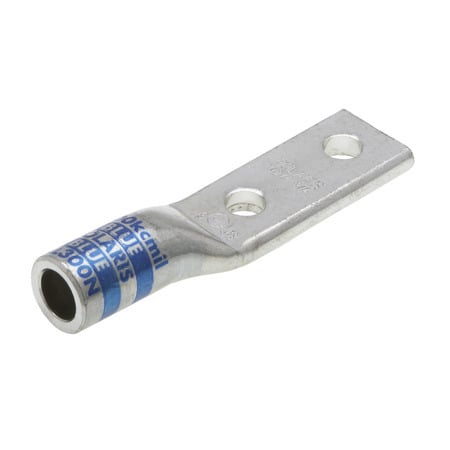

2HoleStandard BarrelAluminum Compression Lug 300 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
#300 ALUM COMPRESSION LUG
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
300 MCM (STR)
|
| Color |
Blue
|
| Conductor Material |
Aluminum - Copper
|
| Conductor Size |
300
|
| Country of Origin |
IND
|
| Finish |
Tin Plated Bronze
|
| Material |
Aluminum
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=5.50 - W=1.37 - OD=1.01 - ID=.650
|
| Special Features |
300 MCM (STR) - 1/2 Mounting Hole - 1 3/4 Hole Spacing
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Standard Barrel - Two Hole
|
| Voltage Rating |
600 V
|
