Hubbell Hubbell HXJUW


Description

Industry Description

Hubbell Premise Wiring Products, Telephone/Data, Jack, XCELERATOR, USOC6-Position, White

Modified Industry Description

JACK,HXJ,6POS,USOC,WH,110

AD Description

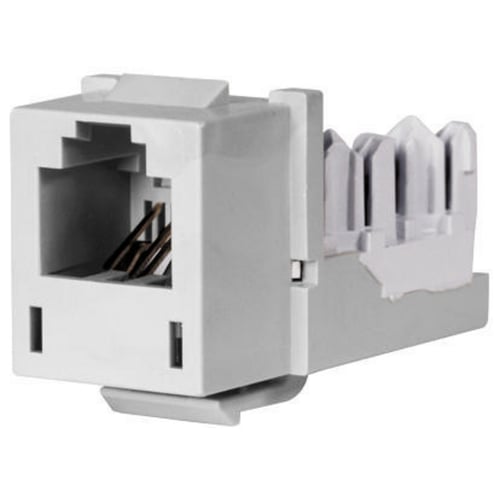

Wiring Device-Kellems XCELERATOR™ NEXTSPEED® SPEEDGAIN® HXJUW 6-Position Standard Jack, USOC Module, Keystone Mount, White

Specifications

Application
Telephone and Data Distribution Jack
Brand Name
Hubbell
Color
White
Connection
Insulation Displacement
Contact_Resistance
100 Ohm
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Mounting
Keystone
Number Of Conductors
6
Size
Standard Sized Product
Special Features

  • 100 Ohm contact resistance
  • 15 different colors aids identification of multiple applications
  • 6-positions
  • Beryllium copper with precious metal plating with nickel under plating nose contacts
  • Exclusive 1-Punch termination tool and QuickLace combination
  • For use with Hubbell® series wallplates
  • High impact thermoplastic (UL94V-0) housing, lexan (UL94V-0) stuffer cap, polypropylene dust cover
  • HPW Icon compatible
  • IDC pair splitting tower allows for minimum disruption to cable twist
  • Insulation displacement connection
  • Labor savings exclusive 1-Punch termination reduces termination time by 75%
  • Mating cycles exceed industry standards by 2 times
  • Mating cycles exceed industry standards by two times
  • One punch termination reduces termination time by 75%
  • Phosphor bronze with 100 micro in tin plating over nickel under plating IDC contacts
  • Stuffer cap ensures secure strain relief and positive snap latching
  • Termination towers provide easy pair splitting, simple lacing and fast punch down
  • Universal Hubbell® keystone design fits into all Hubbell® iSTATION™ and delivery Plus products
  • Universal wiring two distinct labels eliminates wiring confusion, T568B or T568A
  • Withstands 1000 VAC RMS, 1414 VDC voltage
Standard
ANSI/TIA-568-C.2
Sub_Brand
Hubbell Premise Wiring
Temperature_Rating
Max Continuous- 75?° C, Minimum- -40?° C Without Impact
Type
Cat 3
Width_2
5.5000
Width_3
16.1250
Width_4
16.6000
Withstand_Voltage
1,000 Vac @ 60 Hz
