Hoffman Hoffman CDSC603812SSR


Description

Industry Description

Concept with Quarter-Turn Latches Disconnect Enclosure, Type 4X, 60.00x38.00x12.00, SS Type 304

Modified Industry Description

304SS DISC TYPE 4X ADDL LATCHS

AD Description

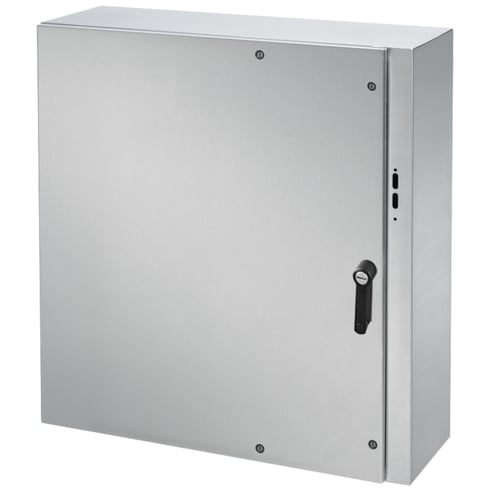

Hoffman CONCEPT™ CDSC603812SSR CWSD Disconnect Enclosure, 60 in L x 38 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Vendor Description

For use in disconnect applications that require larger controls and stylized design features, Concept Disconnect Enclosures feature two additional quarter-turn latches and a door-alignment device for secure closure and security.

Specifications

Application
For use in disconnect applications that require larger controls and stylized design features, CONCEPT™ Disconnect Enclosures feature two additional quarter-turn latches and a door-alignment device for secure closure and security., Furnished with Enclosure
Brand Name
Hoffman
Color
White
Country of Origin
US
Cover_Type
Hinged
Material
304 Stainless Steel
NEMA_Rating
NEMA 4X/IP66
Series
CWSD
Size
60.00X38.00X12.00 in
Special Features

  • Body and door are 14 ga type 304 stainless steel
  • Bonding provision on door, grounding stud on body
  • Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
  • Door latching system (2 or 3-point) installed on door and interlocks with the disconnect handle for added safety
  • External formed 90 deg body flange channels away liquids
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Integral door alignment device to properly align door and gasket to body flange
  • Interlock bracket welded to door
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Panel mounting studs fit optional CONCEPT™ panels and other accessories
  • Provisions on door for optional high impact thermoplastic data pocket
  • Seamless foam in place gasket
  • Seams continuously welded and ground smooth
  • Self-grounding latch system with double seal
  • Stainless steel hidden hinges
  • Standard full access door opening
  • Unique integrated door handle with tool-to-open feature and padlock option installed on door
Standard
Mounting brackets required to meet UL/cUL external mounting requirement., UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13 , IEC 60529, IP66 , Meet
Sub_Brand
Hoffman
Type
CONCEPT™ with Quarter-Turn Latches Disconnect Enclosure, Type 4X
