Hoffman Hoffman CSPB2024


Description

Industry Description

Concept Swing-Out Panels, fits 20.00x24.00, White, Steel

Modified Industry Description

PANEL, SWING OUT, 20X24

AD Description

Hoffman CONCEPT™ CSPB2024 CWY Concept Swing Out Panel, 17.72 in L x 21-3/4 in W, For Use With 20 x 24 in Enclosures, Steel

Vendor Description

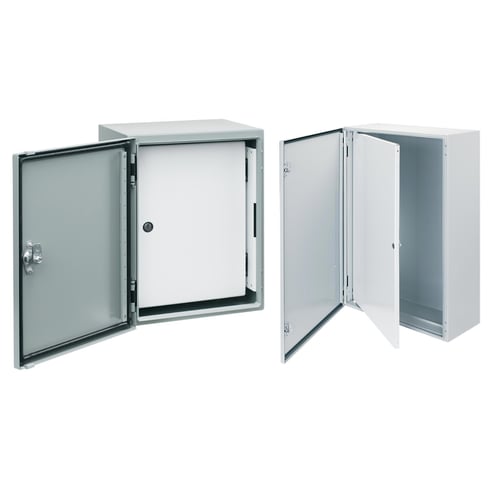

Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Panel is painted white. Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.

Specifications

Application
Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched p
Brand Name
Hoffman
Color
White
Country of Origin
US
Material
Steel
Series
CWY
Size
fits 20.00X24.00 in
Special_Features

  • CSPB panels require adapter CSPBADB and front to back adjustable rails for front to back adjustment
  • Distance from panel surface to door when in the latched position is 1.71 in for solid doors and 1.45 in for window doors
  • Panels swing clear from the front of the enclosure to provide access to mounted internal equipment
  • Swing out panels also can be mounted on front to back adjustable rails
Sub_Brand
Hoffman
Type
CONCEPT™ Swing-Out Panels
