NSI NSi 7102

Name: NSi 7102
Brand: NSI
SKU: 2142841
Price: 266.12 USD
Availability: InStock

NSI 7102

Kirby Risk #: 2142841

UPC: 78626110002, 786261100023, 00786261100023

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: NSI

Description

Industry Description

24 Hour Skip A Day Time Switch 40A 208-277V SPST Indoor Metal Enclosure

Modified Industry Description

208-277V SPST 40A 24 HOUR WITH SKIP

AD Description

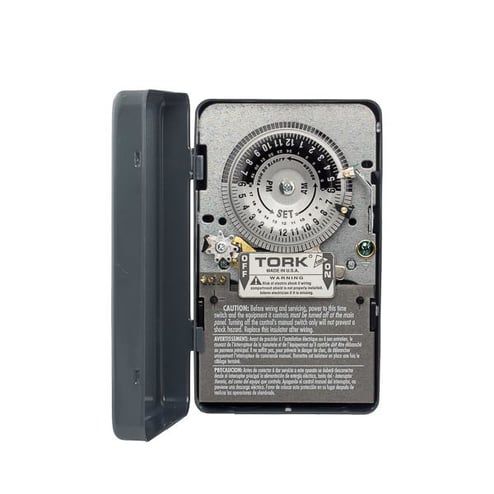

NSI Tork® 7102 7000 Series 1-Phase Mechanical Timer, 24 hr Setting, 208 to 277 VAC, 2 hp, 5 hp, SPST Contact, 1 Poles

Action	SPST
Application	Lighting-Heating-Pumps-Air Conditioning-Sign Control
Base	Screw
Brand Name	NSi
Contact_Rating	208-277
Country of Origin	USA
Enclosure	NEMA 1 Metal Indoor
Environmental_Conditions	-40 to 165 F
Frequency_Rating	60
Initiation	Contact
Mounting	Screw Mount
Number_Of_Pins	12 Pair
Number_Of_Poles	1
Operating_Temperature	-40 to 165 F
Phase	1
Size	L=4.687 - H=7.937 - W=2.937
Special Features	2 hp at 120 VAC, 5 hp at 240 VAC power rating Automatic ON-OFF control when operation is required at the same time every day, with optional versatility of one to six days omission Dial accommodates up to 12 pairs of trippers Enclosed motor protects gears to extend life Manual override until the next regularly scheduled ON-OFF automatic operation then resumes Scheduling minimum ON setting is 20 min with minimum OFF setting at 75 min Skip-a-day omit operations on any day with a 7-spoke wheel marked with days of week
Standard	UL-CSA
Sub_Brand	NSi
Timing_Range	0-24
Type	24 Hour Time Switch
