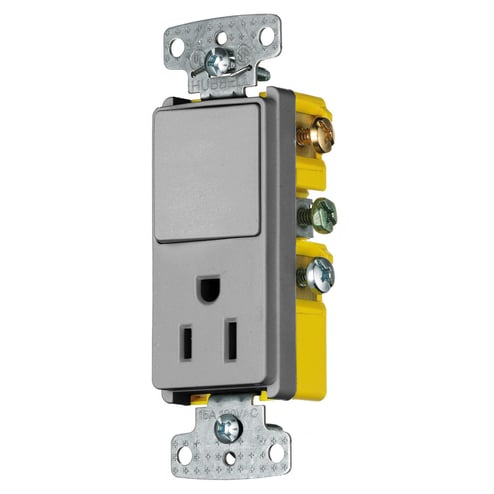

Hubbell Hubbell RCD108GY
Hubbell RCD108GY
Kirby Risk #: 2142091
UPC: 88377811017, 883778110177, 00883778110177
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 1) Single PoleRocker, 1) Single Receptacle, 15A 120V AC, Side Wired, Gray
Modified Industry Description
15A 120V GRAY COMBO 1P ROCKER SINGLE RECPT
AD Description
Wiring Device-Kellems tradeSELECT® RCD108GY Decorator 2-Position Standard Switch and Receptacle Combination Device, 120/125 VAC, 15 A, 1875 W, 1 Poles, 3 Wires, 14 to 12 AWG Wire, Snap Switch Reset
Specifications
| Action |
Snap Switch
|
|---|---|
| Actuator |
Rocker
|
| Amperage Rating |
15
|
| Application |
Residential
|
| Brand Name |
Hubbell
|
| Color |
Gray
|
| Conduit_Connection |
None
|
| Connection |
Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
15A
|
| Country of Origin |
CN
|
| Dielectric_Strength |
1500
|
| Enclosure |
NEMA 5-15R
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Residential
|
| Mounting |
Threaded
|
| Number_Of_Poles |
1
|
| Number_Of_Wires |
3
|
| Operating_Cycles |
30,000 Minimum
|
| Operating_Temperature |
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
|
| Size |
Standard Size
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5 and UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Decorator Switch and Receptacle Combo Devices
|
| Voltage Rating |
125
|
| Wattage |
1875
|
