Siemens Siemens NGB2B030B
Siemens NGB2B030B
Kirby Risk #: 2141218
UPC: 78364341413, 783643414136, 00783643414136
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

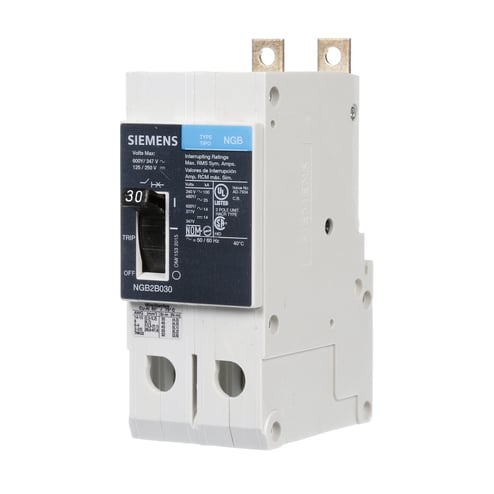

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 30A 2-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BREAKER NGB 2P 30A 600V 14KA LD LUG
AD Description
Siemens NGB2B030B Type NGB Low Voltage Molded Case Circuit Breaker, 600Y/347 VAC, 30 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
30
|
|---|---|
| Brand Name |
Siemens
|
| Country of Origin |
MX
|
| Frame |
NGB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600/347
|
| Width_2 |
4.1000
|
| Width_3 |
40.0000
|
| Width_4 |
40.0000
|
