SolaHD SolaHD E500W


Description

Industry Description

Encapsulated, Copper Wound Industrial Control Transformer, Factory Installed Primary Fule Holder Class"CC", Secondary Fuse Holder (Midget Cartridge, 13/32"x1-1/2"fuse) supplied, no covers, 500 VA

Modified Industry Description

E500+FBP PREWIRED (NO COVERS)

AD Description

SolaHD E500W SBE Encapsulated Midget Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.5 kVA, 50/60 Hz, 1 Phase

Vendor Description

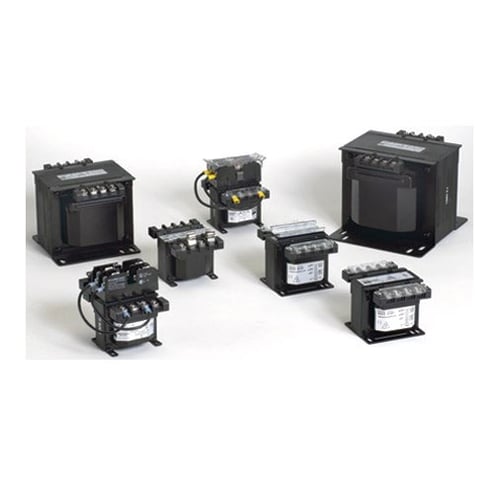

The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.

Specifications

Brand Name
SolaHD
Country of Origin
US
Frequency_Rating
50/60
Insulation
105
Phase
1
Power_Rating
0.5
Primary_Voltage
240/480
Secondary_Voltage
120
Special Features

  • Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
  • Heavy gauge steel mounting plate
  • Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity
  • Interleaved copper windings reduce I2R losses and maximize efficiency
Type
Encapsulated Midget
