NSI NSi GL30048


Description

Industry Description

1 HoleShort Barrel Copper Compression Lug w/ PeepHole300 MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Modified Industry Description

#300 CU COMPRESSION LUG

AD Description

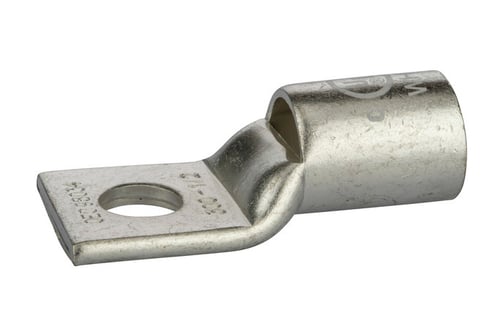

NSI GL30048 1-Hole Compression Lug With Peep Hole, 300 kcmil Stranded Conductor, 1/2 in Stud, Copper

Specifications

Application
Terminate, Splice, Tap Power Connectors
Brand Name
NSi
Cable_Size
300 MCM (STR)
Color
White
Conductor Material
Copper
Conductor Size
300
Country of Origin
IND
Finish
Tin Plated
Material
Copper
Mounting
1/2 Mounting Hole
Number_Of_Holes
1
Package_Quantity
1
Size
L=2.48 - W=1.19 - OD=.810 - ID=.660
Special_Features

  • For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions
  • Listed for 35 kV maximum when properly installed
  • Marked with die index and color coded
  • Peep hole allows easy inspection of the termination to assure complete cable insertion
  • Produced from high conductivity copper tubing
  • Tin plated to provide corrosion and low contact resistance

Standard
UL486
Stud_Size
1/2
Sub_Brand
NSi
Type
Short Barrel - One Hole
Voltage Rating
600 V
