NSI NSi GSS-500


Description

Industry Description

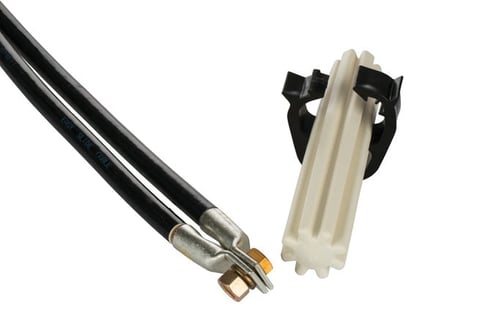

Easy-Splice Push On Gel Stub Splice Kit 250 - 500 MCM Quickly and conveniently insulate, seal and protect sub splice connections up to 1,000 Volts. The robust yet compact design is engineered to handle the harsh environment of motor and many other connection applications (including street lights). Specially formulated material provides excellent abrasion resistance, insulation value, and UV resistance. Each cap size is designed to fit a wide range of cable sizes. The expandable design keeps the cap as small as possible allowing it to expand only as much as needed to fit. Rated 105°C. cULus listed. The kit includes one gel filled cap, one cap clamp, and one phase separator. The kits include three of each one per phase. INSTALLATION: GSS connector kits provide the fastest installation. Simply slide the cover down over the connection and snap the clamp closed. Sealant gel is already in the cap.

Modified Industry Description

EASY-SPLCE GEL STUB KIT

AD Description

NSI EASY-SPLICE™ GSS-500 Push-On Gel Stub Splice Kit, For Use With (2) 250 to 500 kcmil Cable, White

Specifications

Application
Splicing Wire
Brand Name
NSi
Cable_Size
250 to 500 MCM
Cable_Type
Class A-B
Color
White
Country of Origin
MEX
Number_Of_Cables
2
Operating_Temperature
105 C
Package_Quantity
1
Special Features

  • Each cap size is designed to fit a wide range of cable sizes
  • Gel stub splice quickly and conveniently insulate seal and protect stub splice connections
  • GSS connector kits provide the fastest installation
  • Quickly and conveniently insulate, seal and protect sub splice connections up to 1000 VAC
  • Sealant gel is already in the cap
  • Simply slide the cover down over the connection and snap the clamp closed
  • Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance
  • The expandable design keeps the cap as small as possible allowing it to expand only as much as needed to fit
  • The robust yet compact design is engineered to handle the harsh environment of motor and many other connection applications (including street lights)
Standard
cULus
Sub_Brand
NSi
Type
Push On Gel Stub Splice Kit
Voltage Rating
1k
