Panduit Panduit JP131DW-L20


Description

Industry Description

J-PRO Cable support system, with clip for use with #12 wire and threaded rod up to 3/8 (9.5mm) in diameter or 1/8 - 1/4 (3.2mm - 6.4mm), 1.31 (33.3mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.

Modified Industry Description

J-PRO CABLE SUPPORT SYSTEM DROP

AD Description

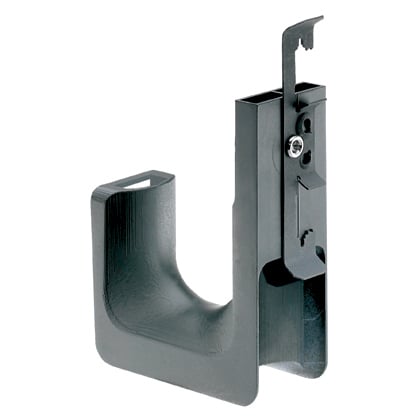

Panduit® J-Pro™ JP131DW-L20 J-Hook, 10 lb Load, Nylon 6.6

Vendor Description

The J-Pro™ Cable Support System is designed to provide a competitive alternative to metal J-hooks for routing cables throughout the physical infrastructure. This system provides complete bend radius control and includes many easy to use mounting options to provide the lowest installed cost. The selection of multiple sizes, colors, and pre-riveted J hook assemblies meet the requirements of a wide variety of applications and are suitable for use in air handling spaces.

Specifications

Application
Route high performance communication cabling in air handling spaces
Brand Name
Panduit
Color
Black
Country of Origin
USA
Finish
Black
Hook_Material
NA
Material
Nylon 6.6
Maximum_Bundle_Diameter
1.31
Mounting
Other
Overall_Length
5
Special Features

  • Bend radius control, smooth pulling surface
  • Color options provide means to segregate and identify cable bundles for specific applications, such as data, voice, security, fire alarm or other applications that require a designated pathway
  • Pre riveted assemblies allow for attachment to ceilings, beams, threaded rods, drop wires and under floor supports to meet requirements of a variety of applications
Standard
UL, cULus Listed, RoHS Compliant
Static_Load_Capacity
1.31
Style
Drop Wire and Threaded Rod Clip
Sub_Brand
Panduit
Type
J-Pro Cable Support
Width_2
9.2000
Working_Load_Limit
10
