NSI NSi PTS6
NSI PTS6
Kirby Risk #: 2131681
UPC: 66238103340, 662381033406, 662381984760, 00662381033406
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

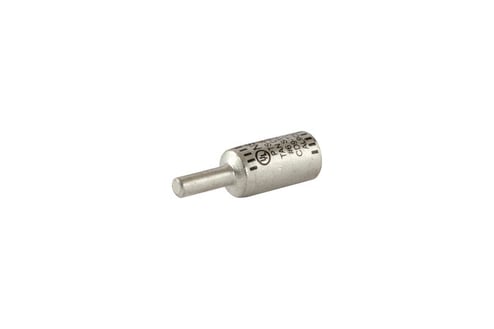

Solid Pin Terminal for Copper and Aluminum Conductors 6 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
#6 PIN TERMINAL
AD Description
NSI PTS6 Centered Dual Rated Pin Terminal With Plastisol Insulating Cover, 6 to 4 AWG Conductor, 0.24 in Dia x 0.681 in L Pin, Aluminum, Tan
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Tan
|
| Conductor Range |
# 6 AWG (STR)
|
| Connection |
# 4 Pin
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1.000
|
| Size |
L=1.85 - OD=.598 - ID=.220 - Pin Dia=.240
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Solid Pin
|
| Voltage Rating |
600
|
