Hoffman Hoffman A48H3608ALLP


Description

Industry Description

Continuous Hinge with Clamps, Type 4X, 48.00x36.00x8.00, Aluminum

Modified Industry Description

ENCLOSURE 48.00X36.00X8.00

AD Description

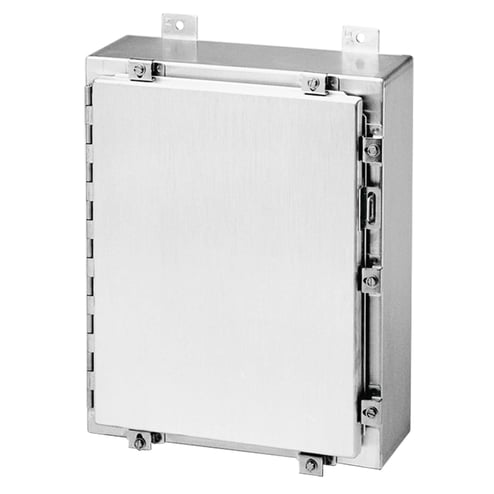

Hoffman A48H3608ALLP A4A Enclosure, 48 in L x 36 in W x 8 in D, NEMA 4X/IP66 NEMA Rating, Aluminum

Vendor Description

Lightweight enclosure protects components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants and marine environments.

Specifications

Application
Lightweight enclosure protects components and controls in corrosive indoor or outdoor environments such as traffic, outside plant, telecommunications and marine environments.
Brand Name
Hoffman
Color
Aluminum
Country of Origin
MX
Cover_Type
Continuous Hinged/Clamp
Material
Aluminum
NEMA_Rating
NEMA 4X/IP66
Series
A4A
Size
48.00X36.00X8.00 in
Special Features

  • Data pocket is high impact thermoplastic
  • Door is easily removed by pulling stainless steel continuous hinge pin
  • Oil-resistant gasket
  • Panel screws are plated
  • Rolled lip around three sides of door and all sides of enclosure opening
  • Seams continuously welded and ground smooth
  • Stainless steel door clamp assembly
  • Tapped pads provided for mounting optional panels
Standard
UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, CSA File No. 42186: Type 4, 4X, 12, IEC 60529, IP66, Meets NEMA Type 3RX requirements
Sub_Brand
Hoffman
Type
Continuous Hinge with Clamps, Type 4X
