NSI NSi GL138
NSI GL138
Kirby Risk #: 2125606
UPC: 66238103606, 662381036063, 00662381036063
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

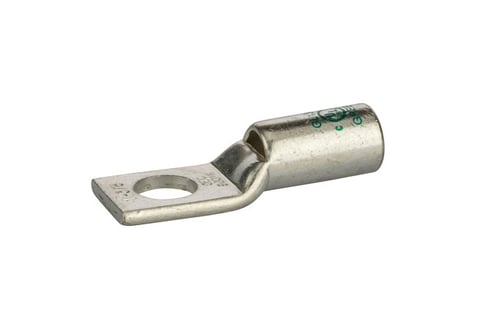

1 HoleShort Barrel Copper Compression Lug w/ PeepHole1 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
#1 CU COMPRESSION LUG
AD Description
NSI GL138 1-Hole Compression Lug With Peep Hole, 1/0 AWG Stranded Conductor, 3/8 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
# 1 AWG (STR)
|
| Color |
Green
|
| Conductor Material |
Copper
|
| Conductor Size |
1/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
3/8 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=1.83 - W=.670 - OD=.470 - ID=.360
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
3/8
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600
|
