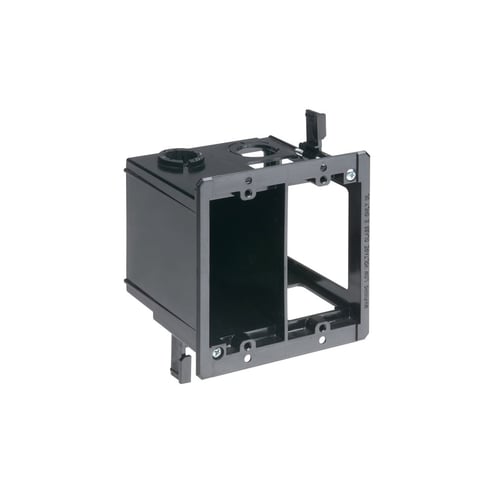

Arlington Arlington LVDR2


Description

Industry Description

Power and low voltage box for existing construction, nail on. Low voltage side provides combination 1/2" and 3/4" knockout. 2 hour fire rating. 20 cu. in.

Modified Industry Description

DUAL VLTG BOX OLD WORK

AD Description

Arlington LVDR2 Power and Low Voltage Box, Plastic, 17 cu-in Capacity, 2 Gangs, 2 Knockouts, 4.25 in L x 4.185 in W x 3.44 in H

Vendor Description

Arlington LVDR2 dual voltage, 2-gang box for retrofit work also installs power and low voltage outlets together in one neat location. This 17 cu-in box delivers a secure installation and adjusts to fit walls from 1/4 to 1-1/2 in THK in existing construction. As the mounting screws are tightened, the wings flip-up, locking the box firmly in place. The low voltage side, for low voltage class 2 wiring includes combo 1/2 and 3/4 in knockouts for raceway.

Specifications

Application
Power/Phone Cable, Fiber Optic Installation
Brand Name
Arlington
Cable_Entry
Plastic
Color
Black
Country of Origin
USA
Cubic_Capacity
17
Knockouts
17
Material
Plastic
Mounting
Screw
Size
4.18 X 4.25
Special Features

  • 2 hr fire rating
  • Adjusts to fit 1/4 to 1-1/2 in THK wallboard paneling or drywall
  • Fast and easy installation, bracket is its own template for cutout
  • Mounting wings hold bracket securely against wall when screws are tightened
  • Neatly installs power and phone/cable outlets together, in one location
  • Saves time and money
  • The low voltage side provides a combo 1/2 and 3/4 in knockout
Standard
UL
Sub_Brand
Arlington
Type
Power and Low Voltage Box
