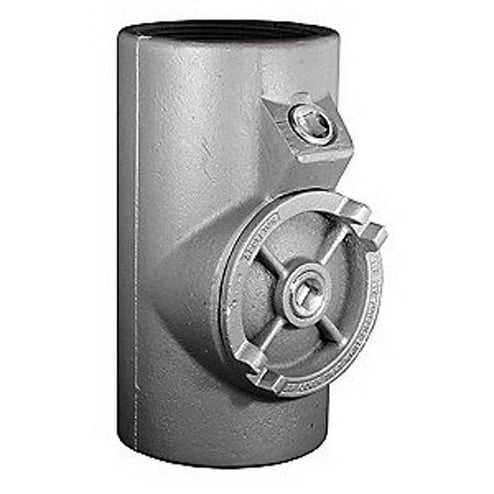

Appleton Appleton EYSEF300AL


Description

Industry Description

UNILETS EY Series 40 PCT Expanded Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 3 IN, Material: Almag 35 Aluminum, Finish: Epoxy Powder Coat, Connection: Female Threaded, Turning Radius: 3.31 IN, Length: 9.19 IN, Width: 4-3/4 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit and IMC

Modified Industry Description

3 EYD SEALING UNILET-ALUM

AD Description

Appleton® UNILETS® EYSEF300AL Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 3 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Brand Name
Appleton
Connection
Female Threaded
Country of Origin
MX
Finish
Epoxy Powder Coated
Material
Almag 35 Aluminum
Special Features

  • 40% fill expanded fill sealing fittings for close turning radius
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III
Sub_Brand
Appleton
Type
Dust-Ignitionproof Explosionproof Raintight
