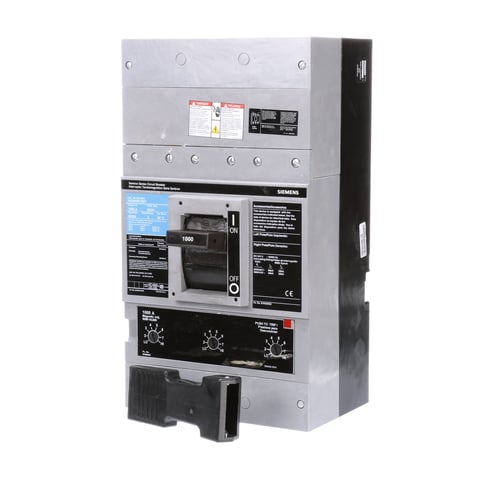

Siemens Siemens NXD63B100L
Siemens NXD63B100L
Kirby Risk #: 2124823
UPC: 78364320631, 783643206311, 00783643206311
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1000A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
AD Description
Sentron™ NXD63B100L Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 1000 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
1000
|
| Application |
Standard 40C Breaker
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Dimensions |
10 in L x 12 in W x 20 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
NXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
20.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/500 VDC
|
