TPI TPI 63016279


Description

Industry Description

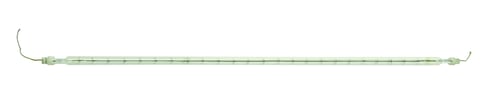

Quartz Lamp, Fostoria, Size- 3/8 IN, 277 V, Frequency Rating- 50/60 HZ, 1600 WTT, Style- Coiled Element with Sealed Porcelain End Caps, Insert Length- 19-11/16 IN, Housing Quartz. For Use With 222/223 Mul-T-Mount Electric Infrared Heater, MM-24A Mitey Midget Electric Infrared Heater

Modified Industry Description

1600W Infrared Element 277V

AD Description

TPI Fostoria 63016279 Horizontal Burning Quartz Lamp, Horizontal Burning, 277 VAC, 1600 W

Specifications

Application
Indoor/Outdoor-Commercial/Industrial
Brand Name
TPI
Color
Clear
Country of Origin
US
Frequency_Rating
50/60
Housing_Material
Quartz
Model
630-16279
Power_Rating
1600
Size
3/8 In
Special Features

  • 16 in L heated
  • 3/8 in Dia clear or red quartz envelope
  • 5000 hr life expectancy of all heating elements
  • Approximately 4100 deg F (high brightness) color temperature emitted
  • Approximately 96% radiant efficiency
  • Coiled tungsten filament with sealed porcelain end caps and halogen gas filled
  • Excellent resistance to thermal shock

Style
Coiled Element with Sealed Porcelain End Caps
Sub_Brand
TPI
Type
Horizontal Burning
Voltage Rating
277
Wattage
1,600
