Hoffman Hoffman A727224SSFSD


Description

Industry Description

Free-Stand, Type 12, 72.06x72.06x24.06, SS Type 304

Modified Industry Description

STAINLESS ENCL. 72.06X72.06X24

AD Description

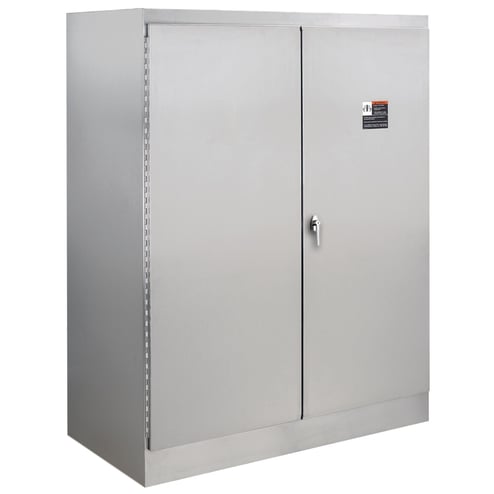

Hoffman A727224SSFSD A30S 2-Door Enclosure, 72.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, 304 Stainless Steel

Vendor Description

Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries.

Specifications

Application
Controls and Drives; Corrosive Environments; Hygienic Environments
Color
Unpainted
Country of Origin
US
Finish
Unpainted
Length1
72.06
Material
304 Stainless Steel
Mounting_Type
Free Stand
NEMA_Rating
NEMA 12/IP55
Series
A30S
Size
72.06X72.06X24.06 in
Special Features

  • 12 ga type 304 stainless steel
  • Accessory mounting channel provided in enclosure top
  • Bonding provision on door, grounding stud on body
  • Data pocket, provided on door with 3 point latches, is high impact thermoplastic
  • Heavy duty lifting eyes are 316 stainless steel
  • Heavy gauge continuous hinges support each door
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
  • Optional panels and rack mounting angles can be mounted anywhere along channels
  • Plated steel 3-point latching and keylocking handle
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners welded to back of enclosures maintain flatness and increase rigidity
Standard
UL 508A Listed, Type 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, E.I.A. RS-310-D, CSA File No. 42186: Type 12, IEC 60529, IP55
Sub_Brand
Hoffman
Type
2-Door
