Appleton Appleton AEBB12270C

Industry Description

Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Breaker Type Cutler-Hammer, EHD, Trip Type Non-Interchangeable, Voltage Rating 240 V, Current Rating 70 Ampere, Interrupting Rating 18000 Ampere at 240 VAC, 14000 Ampere at 480 VAC, Number of Poles 2, Hub Size 2 Inch, Hub Location Dead End, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X, Enclosure Material Copper Free Aluminum, Enclosure Finish Gray Epoxy Powder Coated, Shaft/Handle Material Stainless Steel, Approval UL 1203, CSA C22.2, Material Neoprene (O-Ring), Stainless Steel (Hinges)

Modified Industry Description

CIRCUIT BREAKER ENCLOSURE 2P 70A 240V

AD Description

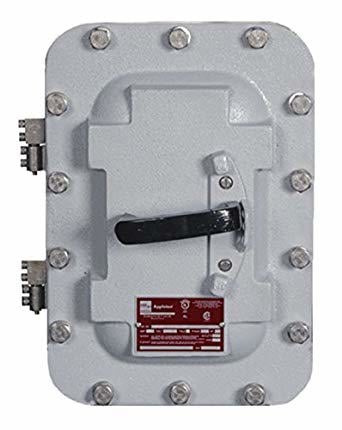

Appleton® AEBB12270C Bolted Enclosure Dust-Ignitionproof Explosionproof Watertight Circuit Breaker, 240 VAC, 70 A, 18 kA, 2 Poles, Non-Interchangeable Trip

Vendor Description

Appleton® explosionproof, dust-ignitionproof, watertight AE Series circuit breakers and enclosures are available in 2 and 3-Pole, 15 to 1200 A models for use in areas where hazardous materials are handled or stored. The non-interchangeable trip circuit breakers and bolted type enclosures offer explosionproof protection with a wide range of options. The AE Series are designed for overload and short circuit protection as well as control of lighting and power circuits.
