Hoffman Hoffman CR290226G037
Hoffman CR290226G037
Kirby Risk #: 2109253
UPC: 78351032189, 783510321895, 00783510321895
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ProAir Harsh Environment, 2500/2700 BTU, SS Type 304
Modified Industry Description
230V,50/60HZ,4.6/3.9A,2200BTU
AD Description

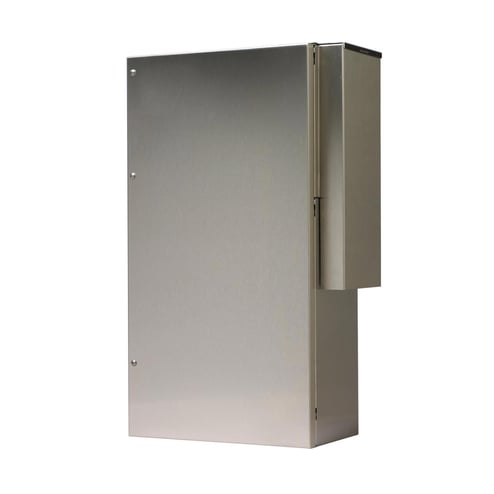

Hoffman ProAir™ CR290226G037 MCL Indoor/Outdoor/Corrosion Medium/Full Sealed Enclosure Air Conditioner, 230 VAC, 3.9/4.6 A, 50/60 Hz, NEMA 12/3R/4/4X Enclosure, 2200 Btu/hr
Vendor Description
The ProAir Series combines state-of-the-art design with pleasing aesthetics. The Harsh Environment Package protects components exposed to the corrosive environment on the ambient side of the air conditioner.
Specifications
| Amperage Rating |
4.6/3.9
|
|---|---|
| Application |
Controls and Drives; Corrosive Environments; Hygienic Environments; Power Distribution
|
| Color |
Light Gray
|
| Country of Origin |
US
|
| Dimensions |
29.5 in H x 15.75 in W x 8.63 in D
|
| Finish |
Brushed #3
|
| Frequency_Rating |
50/60
|
| Length1 |
33.7500
|
| Material |
304 Stainless Steel
|
| Mounting_Type |
Side
|
| NEMA_Rating |
4X Watertight, corrosion-resistant
|
| Operating_Temperature |
-40-131
|
| Power_Rating |
791
|
| Series |
MCL
|
| Special Features |
|
| Standard |
Refer to tables for specific UL/cUL Type ratings these air conditioners maintain when properly installed on a UL/cUL rated enclosure., UL/cUL Listed, File No. SA6453, CE
|
| Sub_Brand |
ProAir
|
| Temperature_Rating |
-40 to 131
|
| Type |
Indoor/Outdoor/Corrosion Medium/Full
|
| Voltage Rating |
230
|
