TPI TPI H1HUH10CA1


Description

Industry Description

Horizontal Fan Forced Wall Heater, 1 PH, 10 KW, 240 V, Panel Mounting, Steel Housing Material, Dimensions- 20 Width X 13 Height X 11 Depth IN, BTU Rating- 34100, 41.7 AMP, Air Flow- 575 CFM

Modified Industry Description

10KW 240V 1P UH Series Unit Htr.

AD Description

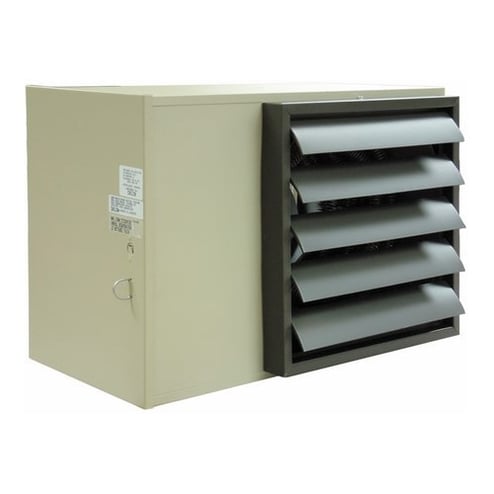

TPI H1HUH10CA1 UH Series 1-Phase Fan Forced Horizontal Standard Unit Heater, 34100 Btu/hr Capacity, 240 VAC, 10 kW Power Rating

Specifications

Amperage Rating
41.7
Application
Indoor-Commercial/Industrial
Brand Name
TPI
Country of Origin
US
DimensionsInches
20 Width X 13 Height X 11 Depth IN
Finish
Powder Coated
Flow_Rate
575
Housing_Material
Steel
Model
H1HUH10CA1
Mounting
Panel
Phase
1
Special Features

  • 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application
  • All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur
  • Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard
  • Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance
  • Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow
  • Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise
Standard
ETLus Listed
Sub_Brand
TPI
Type
1-Phase Fan Forced Horizontal Standard
Voltage Rating
240
