Panduit Pan-Net Panduit Pan-Net CJS688TGY


Description

Industry Description

Category 6, RJ45, 8-position, 8-wire universal shielded black module with integral shield.

Modified Industry Description

CAT 6 SHIELDED MINI COM MODULE

AD Description

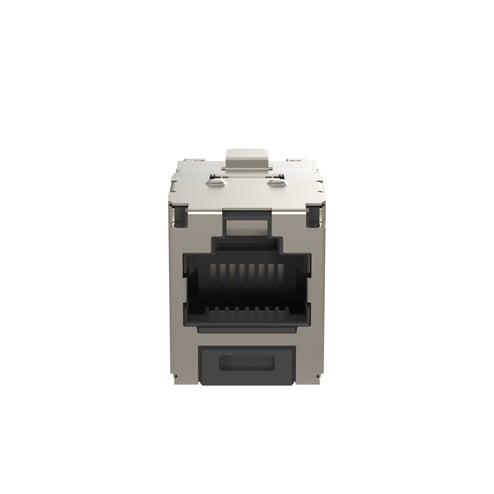

Panduit® TX6™ PLUS CJS688TGY 8-Position 8-Wire RJ45 Shielded TG Style Jack Module With Integral Shield, Cat 6 Category

Specifications

Application
Shielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Black
Country of Origin
CRI
Material
ABS/Phosphorous Bronze/Plastic
Model
Bus (jack)
Slot_Capacity
1
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • Conductor retention slots simplify jack module termination
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
  • Integrated spring shuttered door keeps out dust and debris of un-mated RJ45 jack modules automatically
  • Marked with quality control number for future traceability
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Provides a 360 deg conductive path to ground shielded jack module with no additional assembly required
  • Shield provides seamless bonding of the jack module with Mini-Com® all metal modular patch panels
  • Shielded jack modules snap in and out of all Mini-Com® faceplates, metal modular patch panels and surface mount boxes for easy moves, adds and changes
  • Terminates to TX6000™ Shielded S/FTP marine copper cable, which includes a durable flame, oil, UV and MUD resistant cable jacket, ideal for use in harsh environments encountered in marine applications including ship and offshore/onshore units
Standard
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Pr
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Shielded TG Style
Width_2
7.4000
Width_3
7.4000
