Siemens Siemens NGG2B015L
Siemens NGG2B015L
Kirby Risk #: 2103226
UPC: 78364341363, 783643413634, 00783643413634
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 15A 2-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BREAKER NGG 2P 15A 480V 25KA LUGS
AD Description

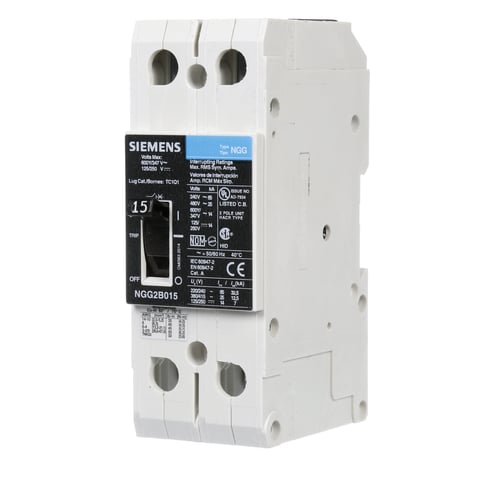

Siemens NGG2B015L Type NGG Low Voltage Molded Case Circuit Breaker, 480 VAC, 15 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial
|
| Class |
NDB
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 5 in W x 4 in H
|
| Frame |
NGG/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
6.5000
|
| Mounting_Type |
DIN Rail
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
General Purpose Low Voltage
|
| Voltage Rating |
480
|
