Hubbell Hubbell HBL7565CY


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding,Non-NEMA, Screw Terminal, Yellow

Modified Industry Description

LOCKING FEMALE CONN 3P3W 10A250V

AD Description

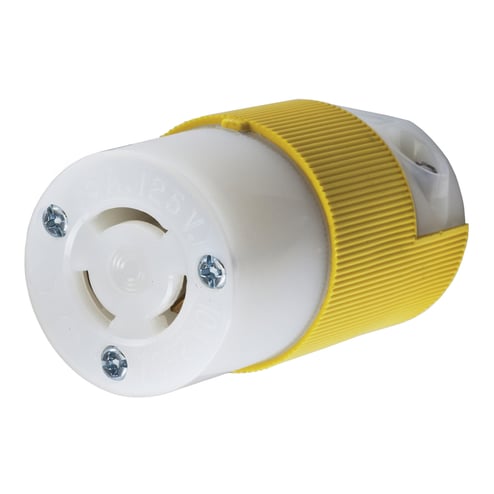

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7565CY Female Non-Grounding Standard Locking Connector, 125/250 VAC, 10 A, 3 Poles, 3 Wires, Yellow

Specifications

Amperage Rating
10
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Yellow
Conductor Range
#14AWG - #12AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite/Nylon
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
3-Wire Non-Grounding
Number_Of_Poles
3
Number_Of_Wires
3
Size
Standard
Special Features

  • #8-32 brass (green finish) ground screw
  • #8-32 brass (white finish on neutral screw when used) terminal screw
  • 0.031 in brass ground contact
  • 15 A 14 AWG terminal accommodation
  • Brass contact spring and spring binding plate
  • Clear polycarbonate terminal retainer, impact modified PBT housing, white valox cord clamp
  • Cold rolled steel nickel plated terminal clamp
  • Cord mounted
  • Insulated body
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Molded-in or stamped-on ratings
  • Natural (white) nylon cord clamp
  • Natural white nylon body contact carrier
  • Permanently ink marked on product catalog number
  • Ribbed nylon housing provides secure, impact and chemical resistant grip
  • Round portable service cords of diameters commensurate with the device rating
  • Superior cord grip design protects terminations from excess strain
  • Terminals identified in accordance with UL 498 (x, y, z, white, green)
  • Withstands 2000 VAC minimum dielectric voltage
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Female Non-Grounding Standard
Voltage Rating
125/250
