NSI NSi ASC250T
NSI ASC250T
Kirby Risk #: 2095497
UPC: 66238103208, 662381032089, 00662381032089
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

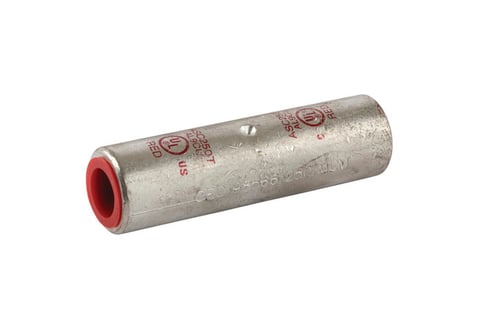

Dual Rated Aluminum Splice 250 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Modified Industry Description
#250 ALUM COMPRESSION SPL
AD Description
NSI ASC250T Standard Barrel Dual Rated Compression Splice Connector, 250 kcmil Stranded Conductor, 3.24 in L, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Red
|
| Conductor Range |
250 MCM (STR)
|
| Conductor Type |
Stranded
|
| Conductor Size |
250
|
| Country of Origin |
IND
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=3.24 - OD=.920 - ID=.589
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Standard Barrel Dual Rated
|
| Voltage Rating |
600
|
