NSI NSi ASC2/0T
NSI ASC2/0T
Kirby Risk #: 2093088
UPC: 66238103205, 662381032058, 00662381032058
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

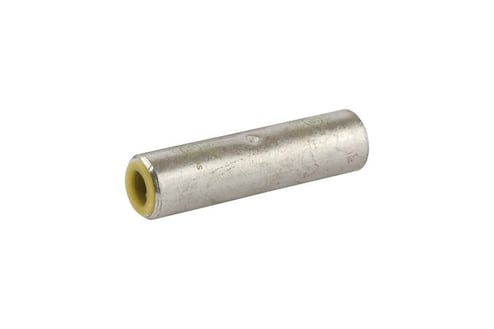

Dual Rated Aluminum Splice 2/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Modified Industry Description
#2/0 ALUM COMPRESSION SPL
AD Description
NSI ASC2/0T ASC-T Series Dual Rated Standard Barrel Compression Splice, 2/0 AWG Stranded Aluminum/Copper Conductor, 2.62 in L, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Olive
|
| Conductor Range |
2/0 AWG (STR)
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Aluminum
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=2.62 - OD=.689 - ID=.440
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Standard Barrel - ALCU Splice
|
| Voltage Rating |
600
|
