NSI NSi ASC4/0T
NSI ASC4/0T
Kirby Risk #: 2093087
UPC: 66238103207, 662381032072, 00662381032072
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

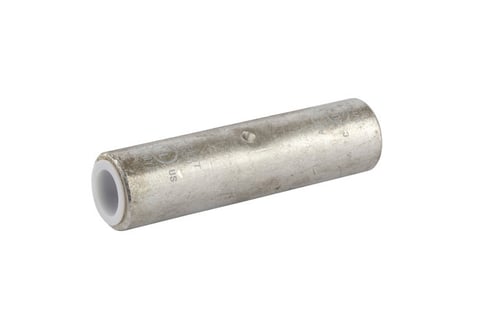

Dual Rated Aluminum Splice 4/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Modified Industry Description
Aluminum Compression Splice 4/0 AWG AL9CU White
AD Description
NSI ASC4/0T Standard Barrel Dual Rated Compression Splice Connector, 4/0 AWG Stranded Conductor, 3.12 in L, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
White
|
| Conductor Range |
4/0 AWG (STR)
|
| Conductor Type |
Stranded
|
| Conductor Size |
4/0
|
| Country of Origin |
IND
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=3.12 - OD=.838 - ID=.550
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Standard Barrel Dual Rated
|
| Voltage Rating |
600
|
