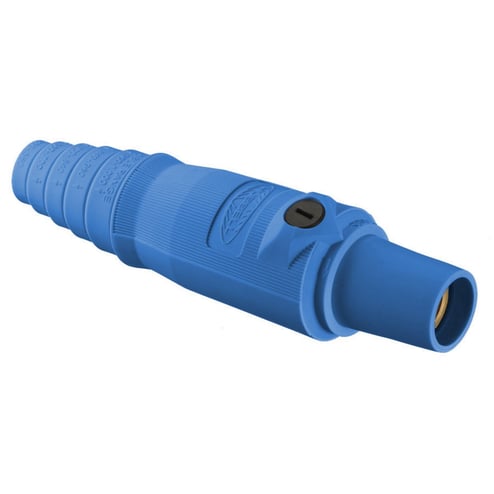

Hubbell Hubbell HBL300FBL


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female, Plug, 300A 250V DC/600V AC, Single Conductor,Double Set Screws, Blue

Modified Industry Description

BLUE FEMALE PLUG, 600/250V, 400A, 1 POLE, INDUSTRIAL GRADE

AD Description

Wiring Device-Kellems HBL300FBL 16 Series Female Heavy Duty Industrial Grade Standard Single Pole Plug, 600 VAC/250 VDC, 400 A, 4 to 2/0 AWG Wire, Pressure Terminal Screw, NEMA 3R/4X/12

Vendor Description

Hubbell Wiring Device-Kellems products have long set the standard for innovation, performance, safety and reliability. Temporary power installations are unique and unpredictable and therefore are very demanding. The most critical mission is to keep the equipment running. Hubbell devices have the proven reliability to deliver secure connections allowing you to focus attention on what matters most. Hubbell single pole devices are extremely durable. The double cam contact design can stand up to repeated mating and un-mating. The added protection of UL type 4X, 12 environmental rating stands up to the most abusive environments. The engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Blue
Connection
Pressure Terminal Screws
Conductor Size
#4 AWG to #2/0 AWG
Cord_Type
Listed SC/PPC Type
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized
Special Features

  • Accommodates wide range of cables
  • Easier to rotate contact in body for installing retaining screw
  • Easily identifiable cable with cut off points for secure fit
  • Extra long non-conductive inner sleeve
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Makes cutting to the correct cable size very easy
  • Simplifies installation and saves time
  • Strip gauge molded into every plug and receptacle housing
  • Turn and lock symbol aids in the mating of devices
Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Female Plug
Voltage Rating
600//250
Wattage
240,000
