NSI NSi PT2
NSI PT2
Kirby Risk #: 2084601
UPC: 66238103302, 662381033024, 00662381033024
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

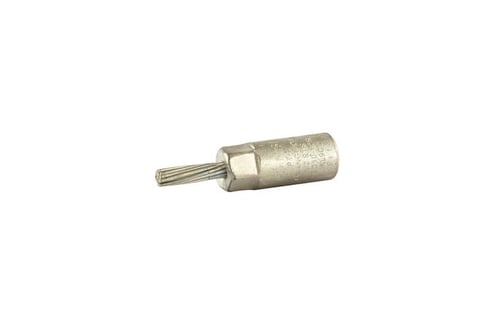

Stranded Bi-Metallic Pin Terminal 2 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Modified Industry Description
Bi Metallic Pin Terminal, 2 AWG Wire Size, #4 Tin Plated STRanded Cooper Pin
AD Description
NSI PT2 Bi-Metallic Pin Terminal With Plastisol Insulating Cover, 4 to 2 AWG Conductor, 0.228 in Dia x 0.913 in L Pin, Aluminum, Tan
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Tan
|
| Conductor Range |
# 2 AWG (STR)
|
| Connection |
# 4 Pin
|
| Country of Origin |
IND
|
| Finish |
Aluminum
|
| Insulation |
Plastisol
|
| Material |
Aluminum/Copper
|
| Package_Quantity |
1.000
|
| Size |
L=2.44 - OD=.641 - ID=.311 - Pin Dia=.228
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Bi-Metallic Pin
|
| Voltage Rating |
600
|
